MCDDEV
Unidade de desenvolvimento de jogos para Mega-CD/Sega-CD e Megadrive/Gnesis
(Se alguma figura não abrir, clique sobre ela com o botão do mouse que abre o menuzinho, e escolha a opção "mostrar imagem")

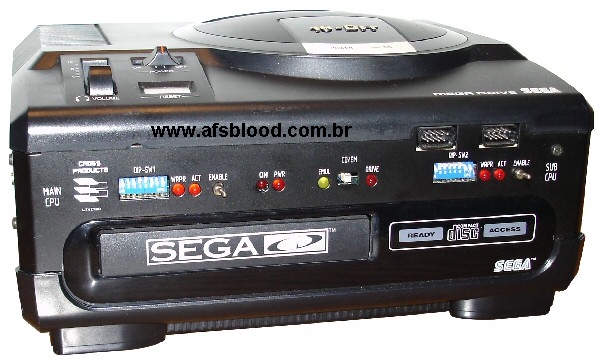

Não é simplesmente um Mega-CD e um Genêsis em um só aparelho... Esta maravilha é usada no desenvolvimento de games para estes consoles, possuindo várias opções e configurações, conforme pode ser lido no texto mais abaixo (texto em inglês retirado de outro site). Obs.: Esta máquina de desenvolvimento mostrada neste artigo não é minha, e as fotos e textos foram retiradas da internet.
SEGA MEGA CD DEVELOPMENT UNIT
1992 CROSS PRODUCTS
(Clique aqui para baixar mais fotos deste aparelho e de suas placas internas)
Texto original em inglês:
The cross systems mega cd development unit consists of a highly modified retail mega cd and megadrive in a custom metal housing. Sandwiched in between the boards for the megadrive and mega cd is a custom scsi /drive emulation board / bios board.The scsi board is quite complex, with the bios board on the mega cd seemingly completely missing. Several functions are laid out along the face.
The two DIP switch banks control both of the processors in the mega cd and megadrive, they also control the region and emulation functions. The unit is region free and can play any sega cd, mega cd, megadrive and genesis cartridge games.
The rear of the unit has two seperate connections for emulation of the cd drive, and the scsi control interface for the mega cd. The units hook up to a large cross systems emu box at the emu port, which in turn is connected to a pc. Up to three seperate dev boxes can be hooked up to the unit at once making it FOUR units plus a PC neccessary for megacd development.(CD emu box, Ram cart emu, ICE box)
